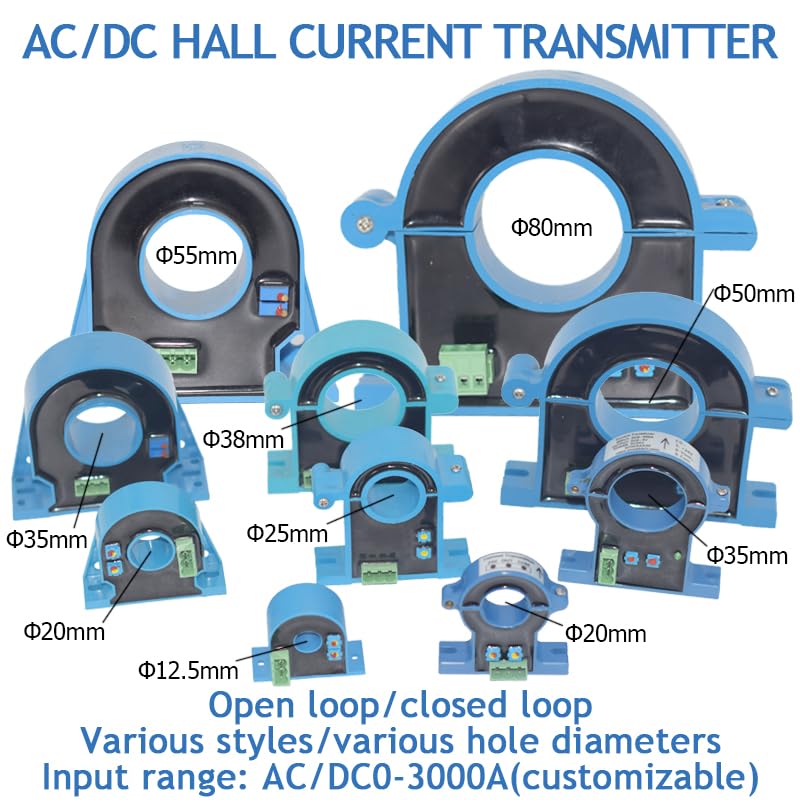

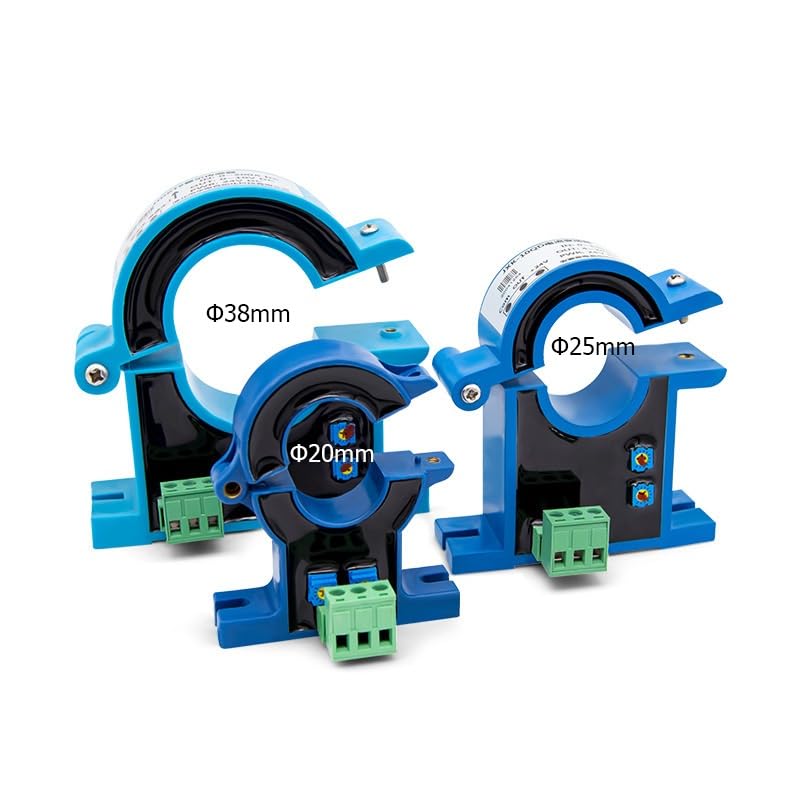

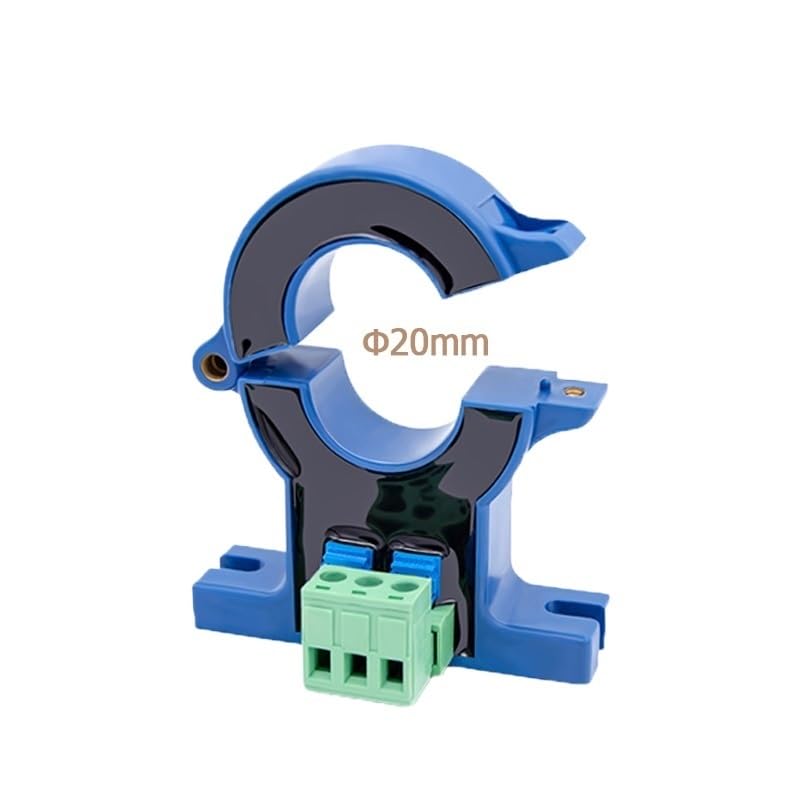

Hall Current Transmitter DC0-1000A Current Sensing 4-20mA 0-20mA 0-5V 10V Output Hole 25mm Perforation Open Closed Current Sensor
Product details
| Management number | 222654986 | Release Date | 2026/05/04 | List Price | US$56.28 | Model Number | 222654986 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

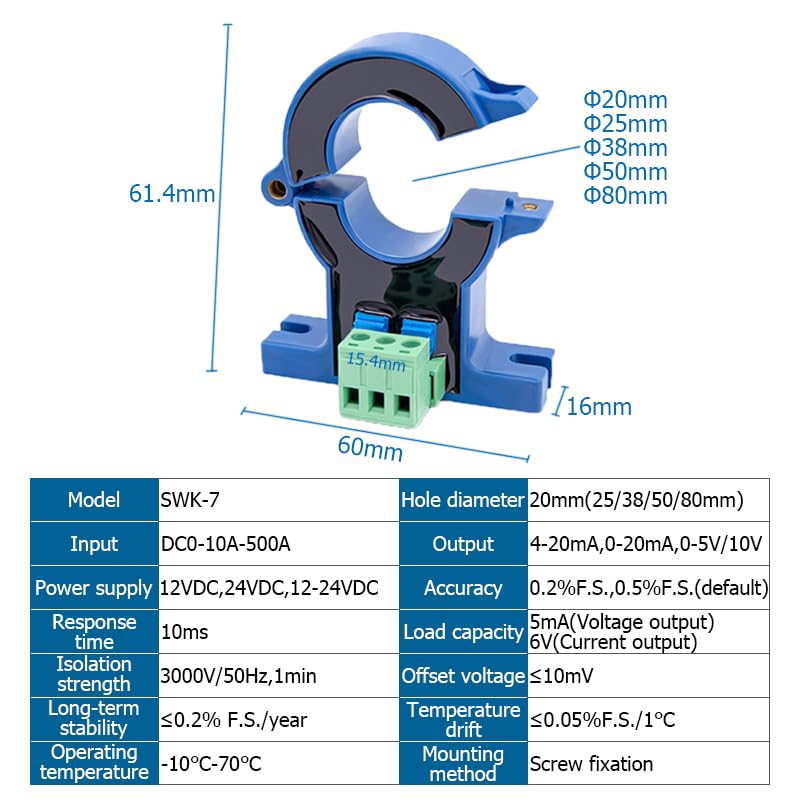

Current SwitchesTechnical Indicators And SpecificationsMeasuring range:1.The diameter of the hole varies depending on the measurement range.2.Hole diameter 20mm:DC-100A-0-10A-500A(AC0-10A-500A).3.Hole diameter 25mm:DC-100A-0-10A-1000A(AC0-10A-1000A).4.Hole diameter 38mm:DC-100A-0-10A-1500A(AC0-50A-1500A).5.Hole diameter 50mm:DC-100A-0-10A-2000A(AC0-50A-2000A).6.Hole diameter 80mm:DC-100A-0-10A-3000A(AC0-50A-3000A).Output:1.Output signal: 4-20mA,0-20mA,0-5V/10V.2.Output RS485: Hole diameter 25/38/50/80mm(20mm is not acceptable).Power supply:1.Can be made: 12V,15V,24V,12V-28VDC.2.220V:Hole diameter 25/38/50/80mm(20mm is not acceptable).Technical characteristics:High measurement accuracy Stable and structureStrong anti-interference ability Lightweight and easy to install==========Hign-concerned Chemical : NoneDimensions : See size chartOperating Temperature : -10-70Supply Voltage : 12V,24V,12V-28VDCAccuracy Class : 0.2%F.S.,0.5%F.S.Model Number : SW-K7DIY Supplies : ELECTRICALCertification : ,FCC,Measuring range : DC0-10A-1000AOutput : 4-20mA,0-20mA,0-5V,0-10VPower supply : ±12V,±15V,24VDC,12V-28VDCResponse time : 10msInstallation method : Screw fixation
- Current Switches
- Hall Current Transmitter DC0-1000A Current Sensing 4-20mA 0-20mA 0-5V 10V Output hole 25mm Perforation Open Closed Current Sensor
| Color | Output 0-10V |
|---|---|
| Model | CSCPEXCZ |
| Terminal | Blade |
| Brand Name | CSCPEXCZ |
| Unit Count | 1.0 Count |
| Part Number | CSCPEXCZ |
| Switch Type | Bipolar Transistor |
| Circuit Type | 1-way |
| Contact Type | Normally Closed |
| Manufacturer | CSCPEXCZ |
| Material Type | Acrylonitrile Butadiene Styrene |
| Mounting Type | DIN Rail Mount |
| Connector Type | Clamp |
| Current Rating | 0.01 Amps |
| Operation Mode | OFF-NONE-ON |
| Item Dimensions | 0.39 x 0.39 x 0.39 inches |
| Number of Items | 1 |
| Contact Material | Alloy Steel |
| Operating Voltage | 1 Kilovolts |
| Specification Met | UL |
| Number of Positions | 1 |
| Lower Temperature Rating | 1 Degrees Celsius |
| Upper Temperature Rating | 1 Degrees Celsius |
| International Protection Rating | IP00 |
